Interior, Rear

  1. Disconnect the negative battery cable.
  2. Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION .)
  3. Remove the third-row seat. (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
  4. Partially peel back the floor covering.
  5. Remove the nuts.
  6. Disconnect the connector, then remove the keyless antenna.
  7. Install in the reverse order of removal.

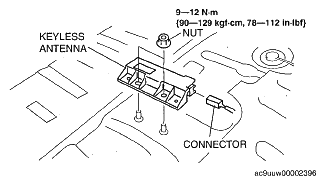

    Fig 1: Keyless Antenna And Connector With Torque Specifications
    G04971323Courtesy of MAZDA MOTORS CORP.
