Inner Handle Removal/Installation: Rear

  1. Disconnect the negative battery cable.
  2. Remove the inner sail garnish. (See INNER SAIL GARNISH REMOVAL/INSTALLATION .)
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Detach the cables from the inner handle and door lock knob.
  5. Install in the reverse order of removal.

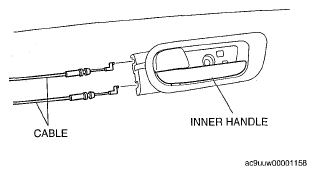

    Fig 1: Identifying Inner Handle And Cables
    G04971251Courtesy of MAZDA MOTORS CORP.
