Front Door Key Cylinder Switch Inspection

1. Inspect for continuity between the front door key cylinder switch terminals.
   • If not as specified, replace the front door latch and lock actuator.

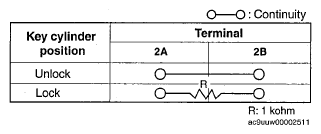

Fig 1: Front Door Key Cylinder Switch Continuity Reference Table

Courtesy of MAZDA MOTORS CORP.

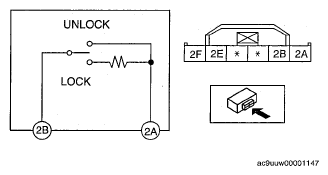

Fig 2: Identifying Front Door Key Cylinder Switch Terminals

Courtesy of MAZDA MOTORS CORP.
