Door Lock Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the screws, then remove the door lock switch.
  5. Install in the reverse order of removal.

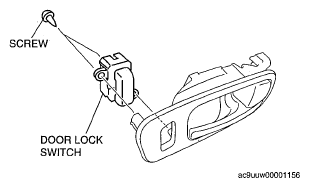

    Fig 1: Identifying Door Lock Switch And Screw
    G04971241Courtesy of MAZDA MOTORS CORP.
