Door Lock Switch Inspection

  1. Inspect for continuity between the door lock switch terminals using an ohmmeter.
    • If not as specified, replace the door lock switch.

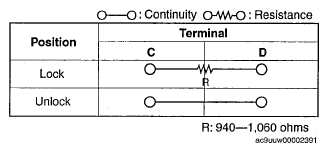

Fig 1: Door Lock Switch Continuity Reference Table
G04971242Courtesy of MAZDA MOTORS CORP.

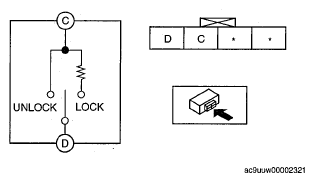

Fig 2: Identifying Door Lock Switch Terminals
G04971243Courtesy of MAZDA MOTORS CORP.
