Selector Cable Adjustment

  1. Remove the center console.
  2. Shift the selector lever to P position.

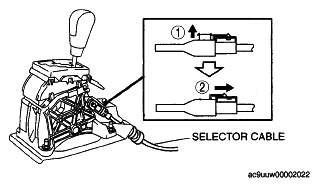

  3. Unlock the lock piece of the selector cable (selector lever side) in the order shown in the figure.
  4. Verify that the manual shaft is in P position.
    Fig 1: Identifying Selector Cable
    G04970421
  5. Lock the lock piece of the selector cable (selector lever side) in the order shown in the figure.
  6. Install the center console.
  7. Shift the selector lever from P position to M range, and make sure that there are no other components in that area to interfere with the lever.
    Fig 2: Locking Lock Piece Of Selector Cable
    G04970422
