Seat Weight Sensor Control Module Removal/Installation

CAUTION:
  • When the seat weight sensor control module is replaced with a new one, perform the seat weight sensor calibration using the M-MDS. (See SEAT WEIGHT SENSOR CALIBRATION .)
  1. Turn the ignition switch to the LOCK position.
  2. Disconnect the negative battery cable and wait for 1 min or more.
  3. Remove the front passenger seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

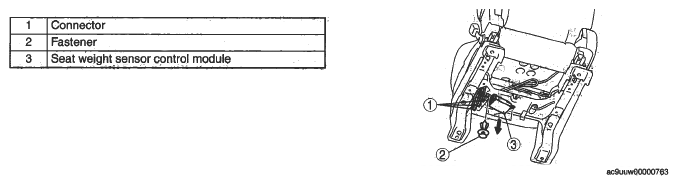

    Fig 1: Identifying Seat Weight Sensor Control Module Components Removal Sequence
    G04970772Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
