Rearview Mirror Installation [Vehicles With Auto Light/Wiper System]

  1. Install the rearview mirror onto the base.
  2. Install the rain sensor.(See RAIN SENSOR REMOVAL/INSTALLATION .)
    Fig 1: Installing Rearview Mirror
    G04971182Courtesy of MAZDA MOTORS CORP.
  3. Install the covers.

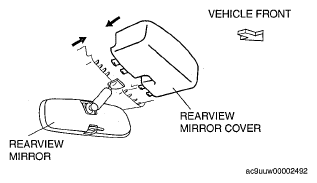

    Fig 2: Identifying Cover
    G04971183Courtesy of MAZDA MOTORS CORP.
