Rear Side

  1. Inspect for continuity between the power window subswitch terminals.
    • If not as specified, replace the power window subswitch.

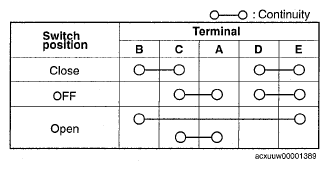

Fig 1: Power Window Subswitch Terminals Continuity Reference Chart
G04971124Courtesy of MAZDA MOTORS CORP.

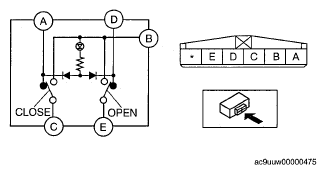

Fig 2: Identifiying Power Window Subswitch Connector Terminals - Rear Side
G04971125Courtesy of MAZDA MOTORS CORP.
