Position Memory Control Module Removal/Installation

  1. Operate the power seat switch and move the seat cushion forward and upward.
  2. Turn the ignition switch to the LOCK position.
  3. Disconnect the negative battery cable and wait 1 min or more  .
  4. Remove the driver-side front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.

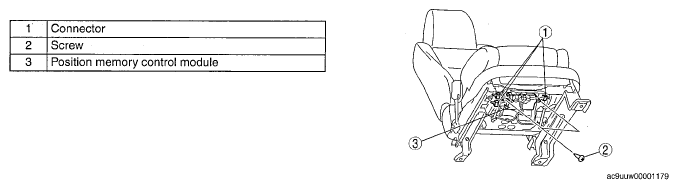

    Fig 1: Identifying Position Memory Control Module Components Removal Sequence
    G04971209Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
