Lumbar Support Switch Inspection

  1. Disconnect the lumbar support switch connector.
  2. Inspect for continuity between the lumbar support switch connector terminals.
    • If not as specified, replace the lumbar support switch.

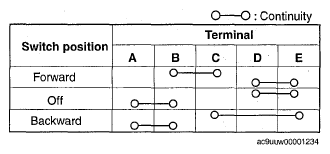

    Fig 1: Lumbar Support Switch erminals Continuity Chart
    G04971203Courtesy of MAZDA MOTORS CORP.

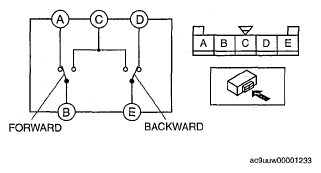

    Fig 2: Identifying Lumbar Support Switch Connector Terminals
    G04971204Courtesy of MAZDA MOTORS CORP.
