Transfer Oil Seal Replacement
- On level ground, jack up the vehicle and support it evenly on safety stands.
- Drain the oil from the transfer. (See TRANSFER OIL REPLACEMENT .)
- Remove the joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION[AWD] )
- Remove the oil seals using a screwdriver.

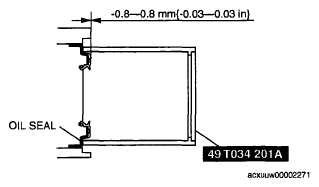

- Using the SST
and a hammer, tap each new oil seal.
Substitution SST
- 49 T034 201A
Outer diameter: 59-64 mm {2.33-2.51 in}
Inner diameter: 55 mm {2.17 in} or more
Plate thickness: 2 mm {0.08 in} or more
Length: 5 mm {0.20 in} or more
- 49 T034 201A
- Coat the lip of each oil seal with transfer oil.
- Install the joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION[AWD] )
- Add the specified amount and type of oil. (See TRANSFER OIL REPLACEMENT .)
