Coupling Component Removal/Installation: Notes

  1. Drain the rear differential oil into a container.
  2. Remove the main silencer and middle pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION[L3 WITH TC] ).
  3. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. Add rear differential oil. (See DIFFERENTIAL OIL REPLACEMENT ).

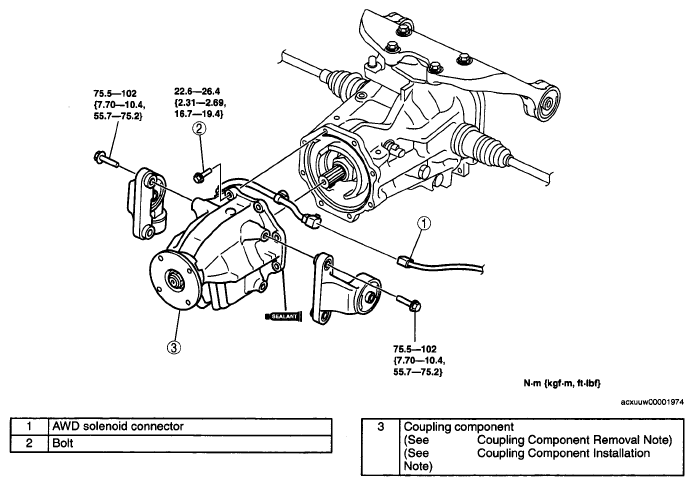

    Fig 1: Coupling Component With Torque Specification
    G04860093Courtesy of MAZDA MOTORS CORP.
