Coupling Component Removal Note

  1. Support the coupling unit with a transmission jack.
  2. Cut away the coupling unit using an oil pan seal cutter.

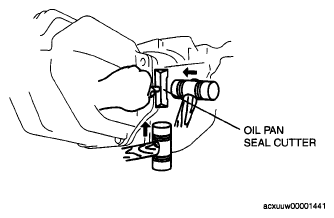

    Fig 1: Identifying Oil Pan Seal Cutter
    G04860094Courtesy of MAZDA MOTORS CORP.
