Locknut Disassembly Note

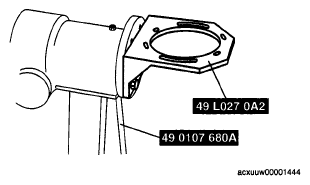

  1. Assemble the SSTs  to the engine stand.
    Fig 1: Assembling SSTs To Engine Stand
    G04860097Courtesy of MAZDA MOTORS CORP.
  2. Install the coupling unit to the SSTs  as shown.
    Fig 2: Installing Coupling Unit To SSTs
    G04860098Courtesy of MAZDA MOTORS CORP.

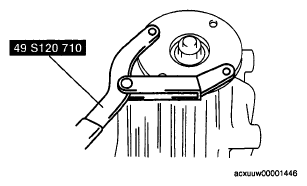

  3. Secure the companion flange using the SST  , and remove the locknut.
    Fig 3: Securing Companion Flange Using SST
    G04860099Courtesy of MAZDA MOTORS CORP.
