Companion Flange Disassembly Note

  1. Remove the companion flange using the SST.

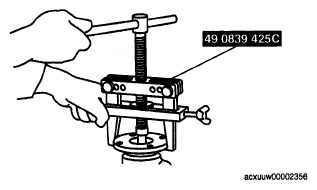

    Fig 1: Removing Companion Flange Using SST
    G04860100Courtesy of MAZDA MOTORS CORP.
