Output Shaft Assembly Note

  1. Install the output shaft to the coupling unit and partially tighten the bolts
  2. Install the companion flange to the output shaft.
  3. Secure the companion flange using the SST  , and tighten the bolts.

    Tightening torque

    41.2-53.9 N.m {4.2-5.4 kgf-m, 30.4 ft.lbf} 39.7

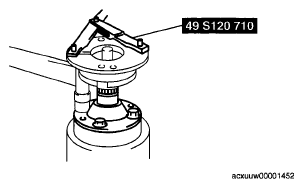

    Fig 1: Securing Companion Flange Using SST
    G04860105Courtesy of MAZDA MOTORS CORP.
