Locknut Assembly Note

  1. Secure the companion flange using the SST  , and tighten a new locknut.

    Tightening torque

    167-226 N.m {17.1-23.0 kgf.m, 124-166 ft.lbf}

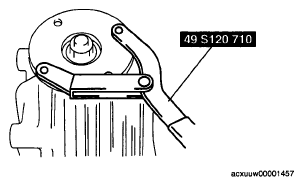

    Fig 1: Securing Companion Flange Using SST
    G04860110Courtesy of MAZDA MOTORS CORP.
