AWD CM Removal Note

  1. Push up the AWD CM slightly, and remove it.

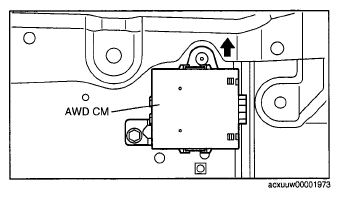

    Fig 1: Pushing Up AWD CM
    G04860092Courtesy of MAZDA MOTORS CORP.
