Symptom Troubleshooting [Automatic Transaxle)
>>
Quick Diagnosis Chart
Quick Diagnosis Chart

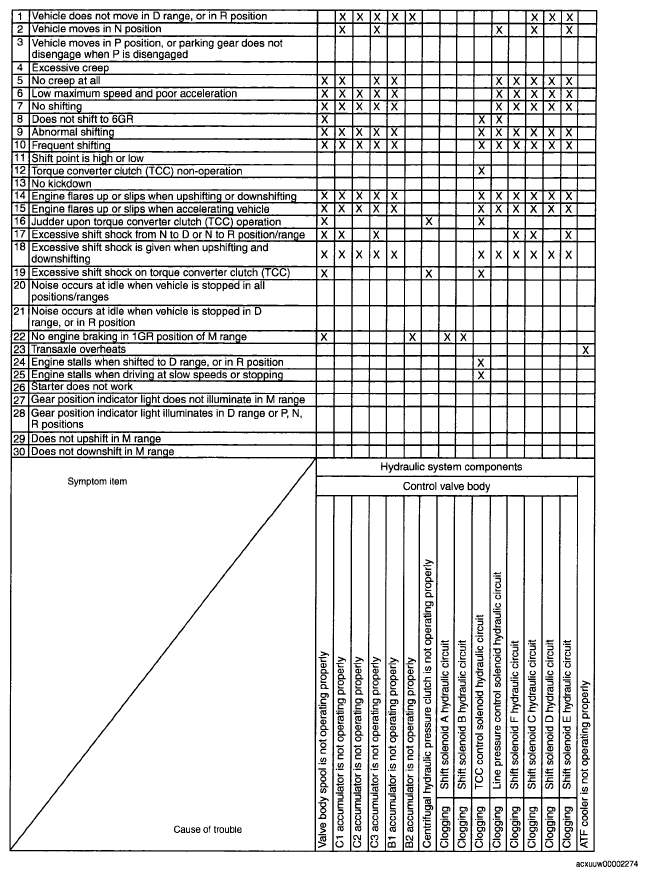

Fig 1: Quick Diagnosis Chart (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

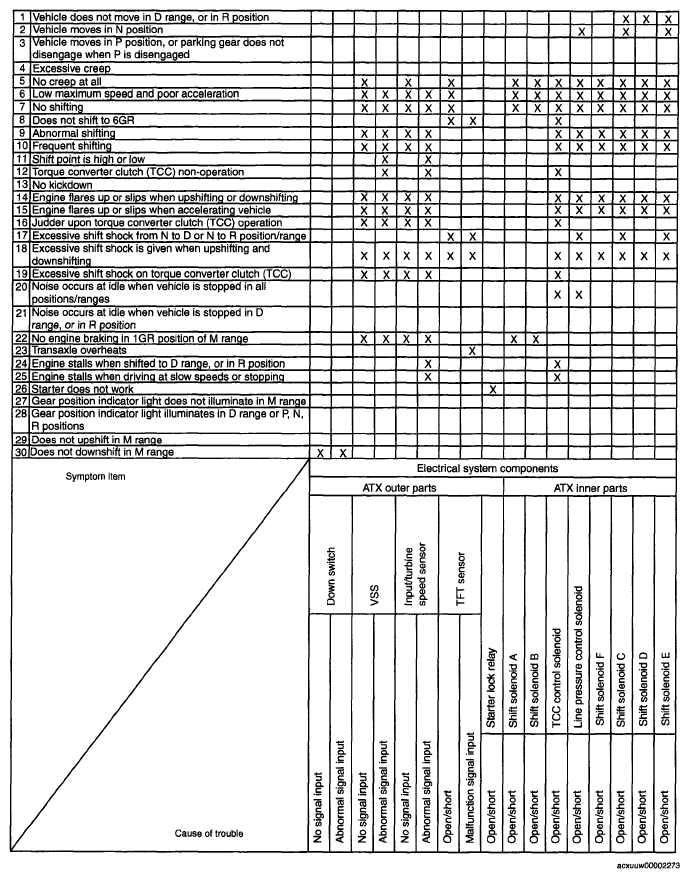

Fig 2: Quick Diagnosis Chart (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

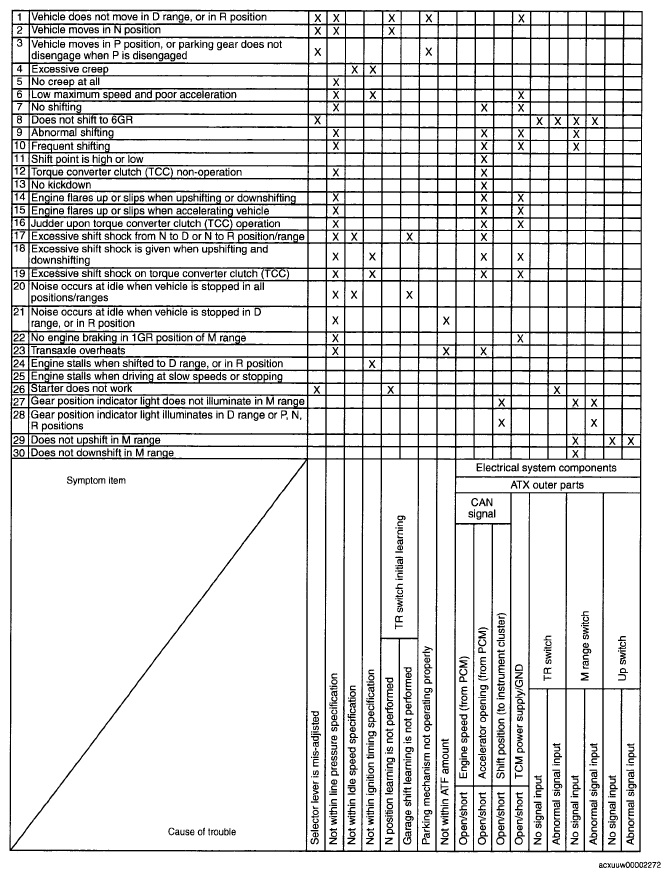

Fig 3: Quick Diagnosis Chart (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

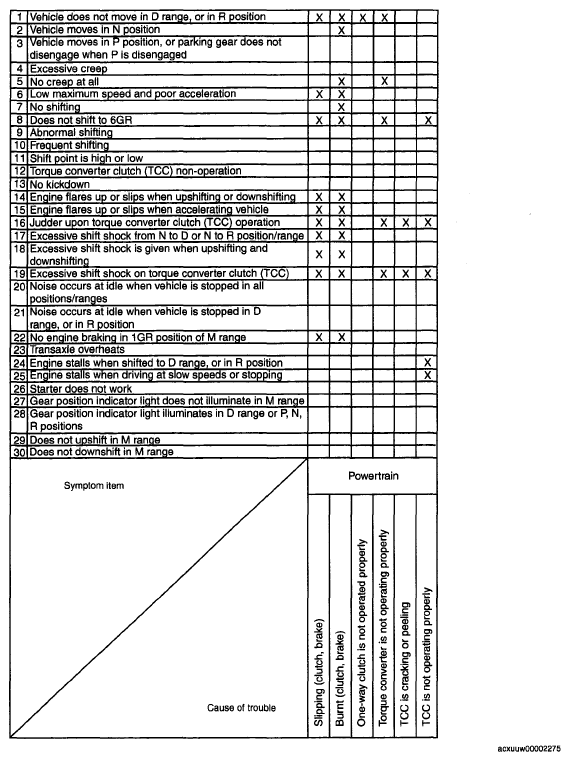

Fig 4: Quick Diagnosis Chart (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
