Symptom Troubleshooting [Automatic Transaxle): Foreword

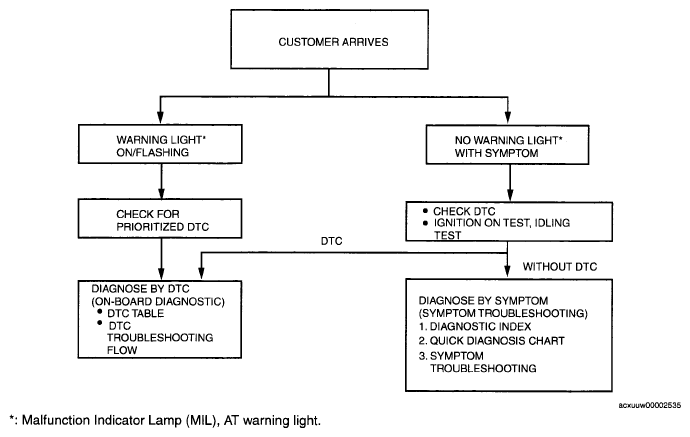

- When the customer reports a vehicle malfunction, inspect the malfunction indicator lamp (MIL) indication, AT warning indicator light flash, and diagnostic trouble code (DTC), then diagnose the malfunction according to following flowchart.
- If a DTC exists, diagnose the applicable DTC inspection. (See
DTC TABLE
).
- If a DTC does not exist, the MIL does not illuminate and the AT warning indicator light illuminate, diagnose the applicable symptom troubleshooting. (See
SYMPTOM TROUBLESHOOTING ITEM TABLE .)
Courtesy of MAZDA MOTORS CORP.
