DTC P0986: Notes

DTC P0986 [AW6A-EL, AW6AX-EL] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0986 Shift solenoid E circuit malfunction (short to power)
DETECTION CONDITION
  • Short circuit in shift solenoid E signal system (The solenoid circuit current value input to the TCM is continuously more than 1,333 mA for 100 ms or more).

Diagnostic support note:
  • This is a continuous monitor (CCM).
  • The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
  • A PENDING CODE is not available.
  • FREEZE FRAME DATA is available.
  • The AT warning light illuminates.
  • The DTC is stored in the TCM memory.
POSSIBLE CAUSE
  • Short to power in wiring harness between shift solenoid E terminal B and TCM terminal B14
  • Short to power in wiring harness between shift solenoid E terminal A and TCM terminal B22
  • Shift solenoid E malfunction
  • Damaged connector between line pressure control solenoid and TCM
  • TCM malfunction

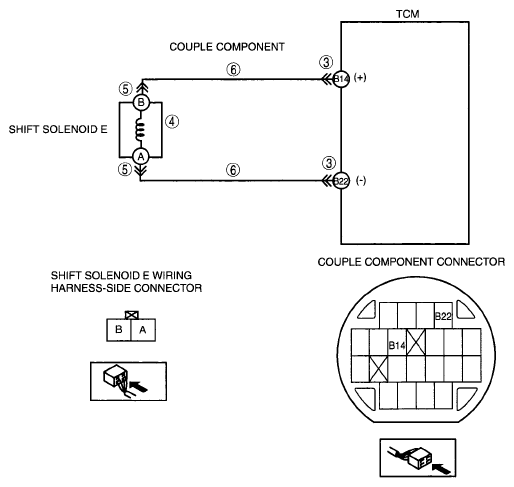

G04860314Courtesy of MAZDA MOTORS CORP.
