DTC P0976: Notes
DTC P0976 [AW6A-EL, AW6AX-EL] DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0976 |
Shift solenoid B circuit malfunction (short to ground) |
| DETECTION CONDITION |
- Short to ground in shift solenoid B signal system (The solenoid remains off continuously for 100 ms or more
even if the TCM sends a solenoid on command).
Diagnostic support note:
- The MIL illuminates if the TCM detects the above malfunction condition during first drive cycle.
- A PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The AT warning light illuminates.
- The DTC is stored in the TCM memory.
|
| POSSIBLE CAUSE |

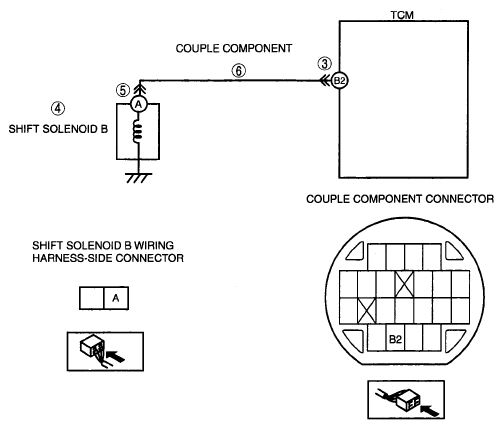

- Short to ground in wiring harness between shift solenoid B terminal A and TCM terminal B2
- Shift solenoid B malfunction
- Damaged connector between shift solenoid B and TCM
- TCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
