DTC P0974: Notes

DTC P0974 [AW6A-EL, AW6AX-EL] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0974 Shift solenoid A circuit malfunction (short to power/open circuit)
DETECTION CONDITION
  • Open or short circuit in shift solenoid A signal system (The solenoid remains on continuously for 100 ms or more  even if the TCM sends a solenoid off command).

Diagnostic support note:
  • This is continuous monitor (CCM).
  • The MIL illuminates if the TCM detects the above malfunction condition during first drive cycle.
  • A PENDING CODE is not available.
  • FREEZE FRAME DATA is available.
  • The AT warning light illuminates.
  • The DTC is stored in the TCM memory.
POSSIBLE CAUSE
  • Open circuit in wiring harness between shift solenoid A terminal A and TCM terminal B5
  • Short to power in wiring harness between shift solenoid A terminal A and TCM terminal B5
  • Shift solenoid A malfunction
  • Damaged connector between shift solenoid A and TCM
  • TCM malfunction

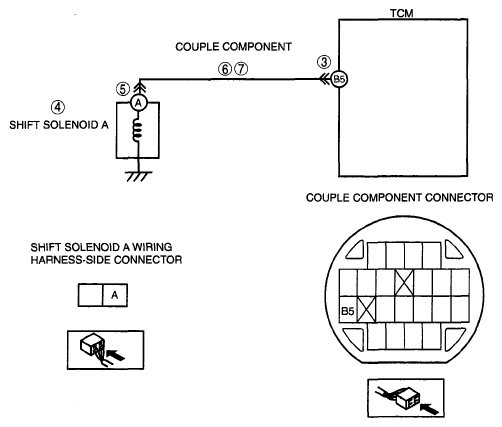

G04860306Courtesy of MAZDA MOTORS CORP.
