DTC P0882: Notes

DTC P0882 [AW6A-EL, AW6AX-EL] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0882 TCM B+ low
DETECTION CONDITION
  • Voltage of less than 9 V detected at TCM terminals A1 and A11 when engine is running.

Diagnostic support note:
  • This is a continuous monitor (CCM).
  • The MIL does not illuminate if the TCM detects the above malfunction condition during the first drive cycle.
  • A PENDING CODE is not available.
  • FREEZE FRAME DATA is available.
  • The AT warning light not illuminates.
  • The DTC is stored in the TCM memory.
POSSIBLE CAUSE
  • Melted METER IG 15 A fuse
  • Melted TCM 10 A fuse
  • Open circuit in wiring harness between TCM 10 A fuse and TCM terminal A1
  • Open circuit in wiring harness between METER IG 15 A fuse and TCM terminal A11
  • Open circuit in wiring harness between TCM terminal A9 and body ground
  • Short to ground in wiring harness between TCM 10 A fuse and TCM terminal A1
  • Short to ground in wiring harness between ROOM 15 A fuse and TCM terminal A11
  • Poor connection of TCM connector
  • TCM malfunction

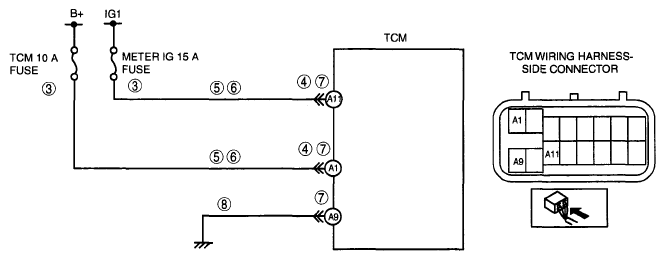

G04860302Courtesy of MAZDA MOTORS CORP.
