DTC P0717: Notes

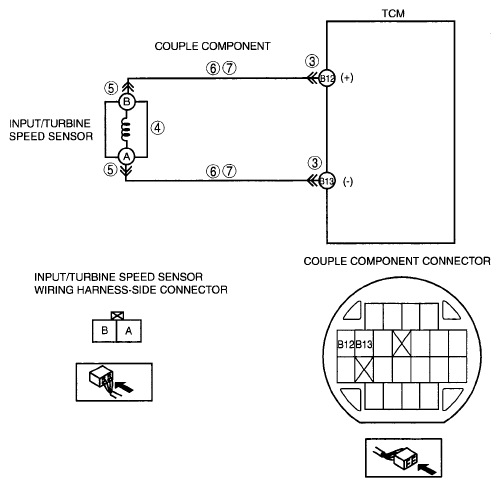

DTC P0717 [AW6A-EL, AW6AX-EL] DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0717 |
Input/turbine speed sensor circuit malfunction (open circuit/short circuit) |
| DETECTION CONDITION |
- When all conditions below are satisfied.
- D range of TR switch input
- Driving vehicle at vehicle speed of 20 km/h {12 mph} or more
- Vehicle speed signal 24 pulse input
- Input/turbine speed sensor signal not input
- Normal turbine speed signal is not input.
Diagnostic support note:
- This is a continuous monitor (CCM).
- The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- A PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The AT warning light illuminates.
- The DTC is stored in the TCM memory.
|
| POSSIBLE CAUSE |
- Input/turbine speed sensor malfunction
- Open circuit between input/turbine speed sensor terminal B and TCM terminal B12
- Open circuit between input/turbine speed sensor terminal A and TCM terminal B13
- Short to ground in wiring harness between input/turbine speed sensor terminal B and TCM terminal B12
- Short to ground in wiring harness between input/turbine speed sensor terminal A and TCM terminal B13
- Short to power in wiring harness between input/turbine speed sensor terminal B and TCM terminal B12
- Short to power in wiring harness between input/turbine speed sensor terminal A and TCM terminal B13
- Damaged connector between input/turbine speed sensor and TCM
- TCM malfunction
|
