DTC P0713: Notes

DTC P0713 [AW6A-EL, AW6AX-EL] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0713	Transaxle fluid temperature (TFT) sensor circuit malfunction (short to power/open circuit)
DETECTION CONDITION	If the TCM detects the following condition for 1 s or more , the TCM determines that the TFT sensor circuit has a malfunction. Engine warmed-up ATF temperature less than -43°C {-45.4°F} Diagnostic support note: This is continuous monitor (CCM). The MIL illuminates if the TCM detects the above malfunction condition during first drive cycle. A PENDING CODE is not available. FREEZE FRAME DATA is available. The AT warning light illuminates. The DTC is stored in the TCM memory.

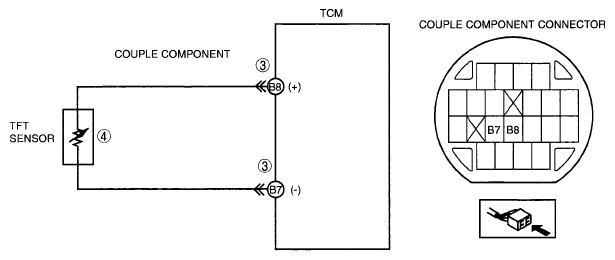

POSSIBLE CAUSE	TFT sensor malfunction Open circuit in wiring harness between TFT sensor and TCM terminal B8 Open circuit in wiring harness between TFT sensor and TCM terminal B7 Short to power in wiring harness between TFT sensor and TCM terminal B8 Short to power in wiring harness between TFT sensor and TCM terminal B7 Damaged connector TCM TCM malfunction
Courtesy of MAZDA MOTORS CORP.

DTC P0713

Transaxle fluid temperature (TFT) sensor circuit malfunction (short to power/open circuit)

DETECTION CONDITION

If the TCM detects the following condition for 1 s or more , the TCM determines that the TFT sensor circuit has a malfunction.
- Engine warmed-up
- ATF temperature less than -43°C {-45.4°F}

Diagnostic support note:

This is continuous monitor (CCM).
The MIL illuminates if the TCM detects the above malfunction condition during first drive cycle.
A PENDING CODE is not available.
FREEZE FRAME DATA is available.
The AT warning light illuminates.
The DTC is stored in the TCM memory.

POSSIBLE CAUSE

Courtesy of MAZDA MOTORS CORP.
