DTC P0711: Notes

DTC P0711 [AW6A-EL, AW6AX-EL] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0711 Transaxle fluid temperature (TFT) sensor malfunction (stuck)
DETECTION CONDITION
  • Change in ATF temperature cannot be detected for 15 min or more when driving in D range.

Diagnostic support note:
  • This is continuous monitor (CCM).
  • The MIL illuminates if the TCM detects the above malfunction condition during first drive cycle.
  • A PENDING CODE is not available.
  • FREEZE FRAME DATA is available.
  • The AT warning light illuminates.
  • The DTC is stored in the TCM memory.
POSSIBLE CAUSE
  • TFT sensor malfunction
  • Damaged connector TCM
  • TCM malfunction

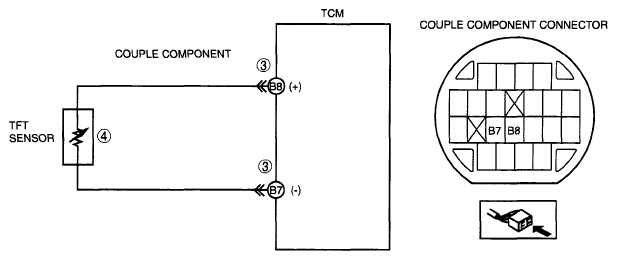

G04860295Courtesy of MAZDA MOTORS CORP.
