TR Switch Operating Inspection
- Verify that the starter operates only when the ignition switch is turned to the START position with the selector lever in P or N position.
- Verify that the back-up lights illuminate when shifted to R position with the ignition switch at the ON position.

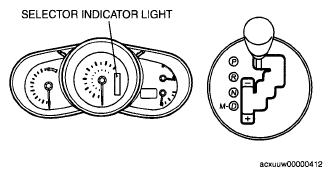

- Verify that the positions of the selector lever and the indicator light correspond.
- Verify that the TR PID is normal.
- If there is any malfunction, perform the neutral position learning. (See
TCM REMOVAL/INSTALLATION .)
Courtesy of MAZDA MOTORS CORP.
