Oil Cooler Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner component. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
  3. Remove the under cover.
  4. Drain the ATF into a container. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  5. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT ).
  6. Remove the following parts.
    1. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION ).
    2. Splash shield
    3. Resonance chamber (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
  7. Remove in the order indicated in the table.
  8. Install in the reverse order of removal.
  9. Add the engine coolant. (See ENGINE COOLANT REPLACEMENT ).
  10. Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  11. Install the under cover.
  12. Install the air cleaner component. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
  13. Connect the negative battery cable.
  14. Inspect for oil leakage from the oil pipes and oil hoses.
  15. Inspect for coolant from the hoses.
  16. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION ).
  17. Inspect the ATF level and condition. (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION .)
  18. Perform the line pressure test. (See MECHANICAL SYSTEM TEST .)

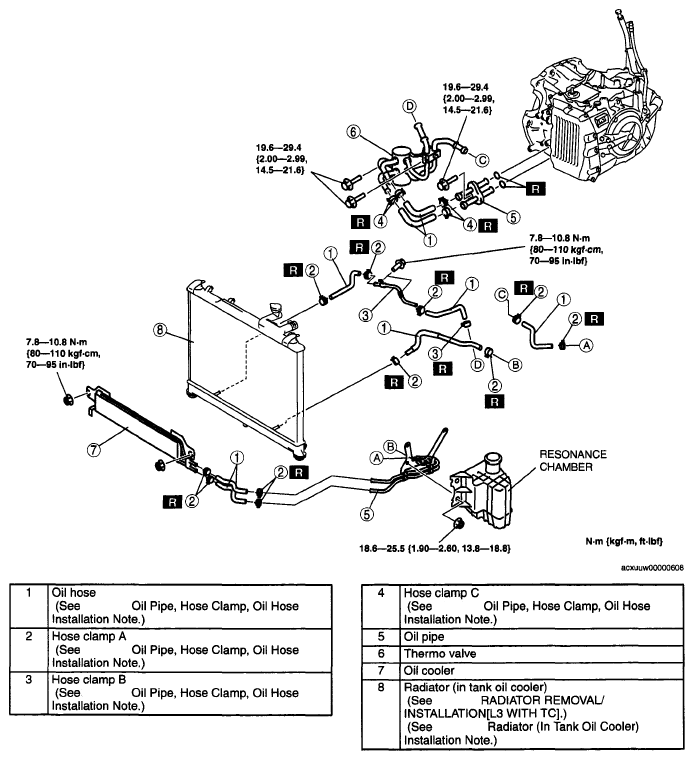

    Fig 1: Disassembling View Of Oil Cooler Components With Torque Specifications
    G04860424Courtesy of MAZDA MOTORS CORP.
