Input/Turbine Speed Sensor Removal/Installation
WARNING:
- A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until then are cool before replacing the ATF.
- Disconnect the negative battery cable.
- Remove the air cleaner component. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
- Remove the under cover.
- Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
- Remove the resonance chamber. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).

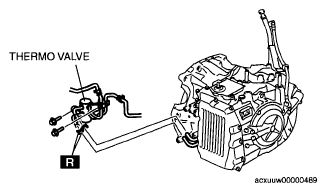

- Remove the thermo valve. (See OIL COOLER REMOVAL/INSTALLATION .)
- Remove the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)

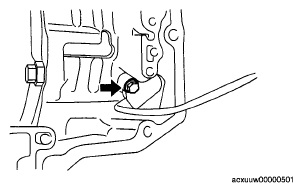

- Remove the input/turbine speed sensor.
- Install the input/turbine speed sensor.
Tightening torque
3.9-6.9 N.m {40-70 kgf.cm, 26-60 in.lbf}
- Install the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
- Install the thermo valve. (See OIL COOLER REMOVAL/INSTALLATION .)
- Install the resonance chamber. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
- Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
- Install the under cover.
- Install the air cleaner component. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
- Connect the negative battery cable.
- Perform the mechanical system test. (See MECHANICAL SYSTEM TEST .)
