Drive Plate Removal/Installation: Notes

  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the figure.

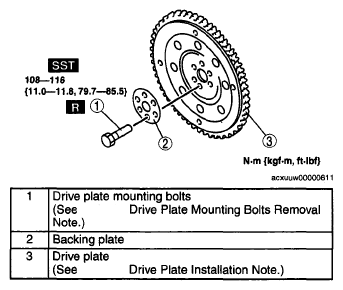

    Fig 1: Drive Plate Replacement Components With Torque Specifications
    G04860435Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
