Torque Converter Nuts Installation Note

Align the holes by turning the torque converter.
Insert a screwdriver through the converter housing service hole, and lock the drive plate.
CAUTION:
- Loosely and equally tighten the torque converter nuts, then further tighten them to the specified tightening torque.

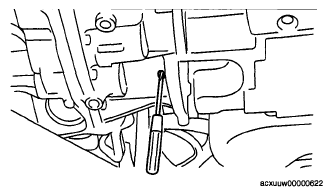

  Fig 1: Locking Drive Plate
  Courtesy of MAZDA MOTORS CORP.
Tighten the torque converter mounting nuts.
Tightening torque

34.3-60.8 N.m {3.50-6.19 kgf.m, 25.3-44.8 ft.lbf}

Fig 2: Identifying Torque Converter Nuts
Courtesy of MAZDA MOTORS CORP.
