Selector Cable Installation Note

  1. Install the selector lever to the manual shaft lever so that no load acts on the selector cable.
    NOTE:
    • Install the selector lever to the manual shaft lever with the clip side of the selector cable end facing up.
  2. Confirm that the tip of the manual shaft lever projects out of the end of the selector cable.

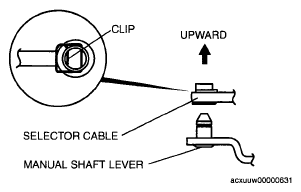

    Fig 1: Installing Manual Shaft Lever With Clip Side Of Selector Cable
    G04860389Courtesy of MAZDA MOTORS CORP.
