NO. 4 Engine Mount Bracket Installation Note

Install the NO. 4 engine mount bracket to the transaxle and temporarily tighten nuts
Temporarily tighten bolt.
Temporarily tighten bolt A and nuts B, C.
Tighten bolt A, nuts B and C in the order of B→A→C.
Tighten bolt D.

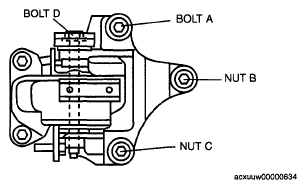

Fig 1: Identifying Engine Mount Bracket Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

Bolt A, Nut B, C: 66.6-93.1 N.m {6.80-9.49 kgf.m, 49.2-68.6 ft.lbf}

Bolt D: 74.5-104.9 N.m {7.60-10.69 kgf.m, 55.0-77.3 ft.bf}
