NO. 1 Engine Mount Installation Note

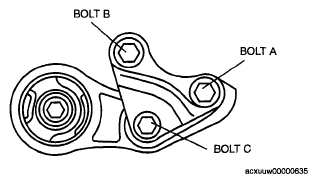

- Install the NO. 1 engine mount bracket to the transaxle, then temporarily tighten bolts A and B.
- Install the NO. 1 engine mount rubber to the bracket, then temporarily tighten bolt C.
- Tighten bolts A and B in the order of A→B.
- Tighten bolt C.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
Bolt A, B: 93.1-116.6 N.m {9.50-11.88 kgf.m, 68.7-85.9 ft.lbf}
Bolt C: 85.3-116.6 N.m {87.0-11.88 kgf.m, 62.9-85.9 ft.lbf}
