Front Stabilizer Installation Note

  1. Install the stabilizer bar so that the identification mark is on the left side of the vehicle.

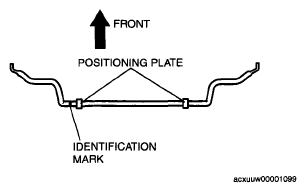

    Fig 1: Identifying Stabilizer Bar And Identification Mark
    G04859915Courtesy of MAZDA MOTORS CORP.
