Front Shock Absorber and Coil Spring Installation Note

  1. Install the front shock absorber and coil spring so that the identification mark on the mounting rubber is facing to the position indicated in the figure.

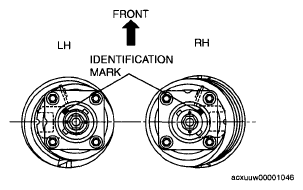

    Fig 1: Identifying Identification Mark On Mounting Rubber Position
    G04859905Courtesy of MAZDA MOTORS CORP.
