Upper Spring Seat Assembly Note

  1. Install the upper spring seat so that the notch is facing to the out side of the vehicle.

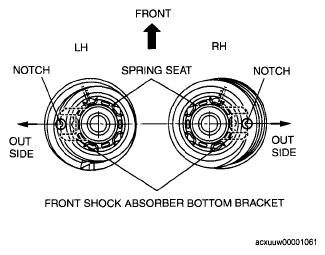

    Fig 1: Identifying Upper Spring Seat Assembly
    G04859909Courtesy of MAZDA MOTORS CORP.
