Front Shock Absorber And Spring Disassembly/Assembly: Notes

  1. Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND SPRING REMOVAL/INSTALLATION .)
    WARNING:
    • Removing/installing the piston rod nut is dangerous. The shock absorber and spring could fly off under tremendous pressure and cause serious injury or death. Secure the shock absorber in the SSTs before removing the piston rod nut.
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassemble.

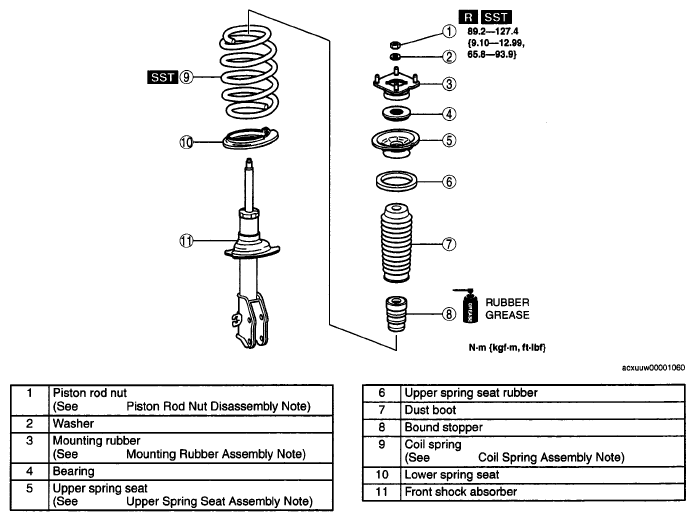

    Fig 1: Identifying Front Shock Absorber And Spring Components
    G04859906Courtesy of MAZDA MOTORS CORP.
