Mounting Rubber Assembly Note

  1. Slide the mounting rubber identification mark away from the notch of the spring seat and install.

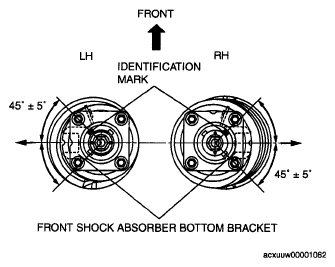

    Fig 1: View Of Mounting Rubber Assembly And Identification Mark
    G04859910Courtesy of MAZDA MOTORS CORP.
