Front Lower Arm Removal/Installation

  1. Remove the under cover.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

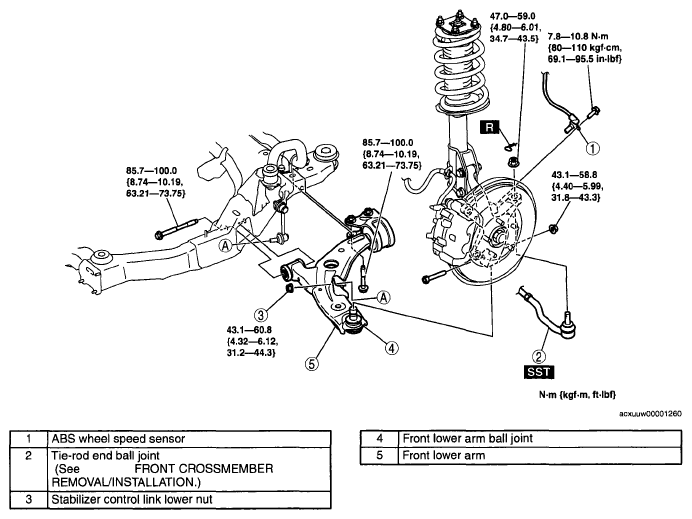

    Fig 1: Front Lower Arm Replacement Components With Torque Specifications
    G04859912Courtesy of MAZDA MOTORS CORP.
