Resistor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. (See RESISTOR REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.

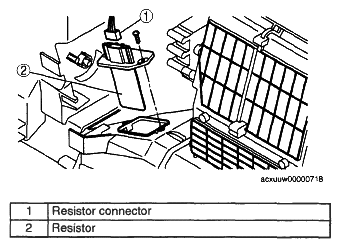

    Fig 1: View Of Resistor
    G04860648Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
