Resistor Inspection

  1. Verify that the resistance between the terminals of the resistor is as shown in the table.
    • If not as specified, replace the resistor.
      TERMINAL RESISTANCE SPECIFICATION

      Terminal Resistance (ohm)
      A-D 0.22
      A-B 0.87
      A-C 2.76

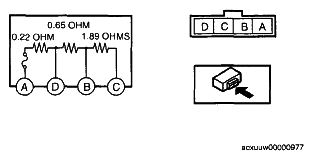

      Fig 1: Inspecting Resistance Between Terminal Of Resister
      G04860649Courtesy of MAZDA MOTORS CORP.
