Refrigerant Pressure Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Discharge the refrigerant from the system. (See REFRIGERANT RECOVERY .) (See REFRIGERANT CHARGING ).
  3. Loosen the refrigerant pressure switch using two spanners.
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST ).

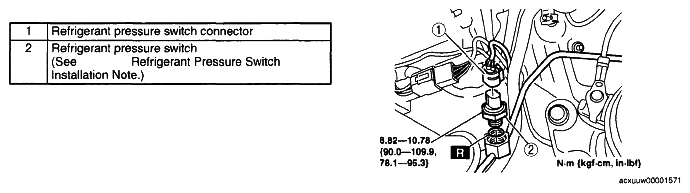

    Fig 1: Refrigerant Pressure Switch With Torque Specifications
    G04860675Courtesy of MAZDA MOTORS CORP.
