Passenger Compartment Temperature Sensor Inspection

  1. Measure the temperature around the passenger compartment temperature sensor.
  2. Measure the resistance between terminals of the passenger compartment temperature sensor.
    • If the resistance is not as shown in the graph, replace the passenger compartment temperature sensor.

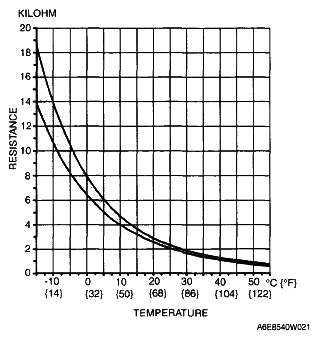

      Fig 1: Passenger Compartment Temperature Sensor Resistance Graph
      G04860683Courtesy of MAZDA MOTORS CORP.
