Full-auto Air Conditioner

Disassemble in the order indicated in the table.

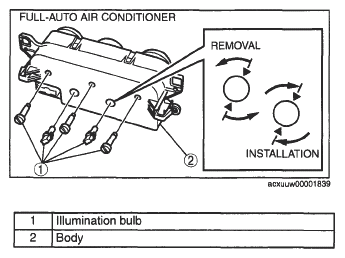

Fig 1: Disassembling Climate Control Unit (Full-Auto Air Conditioner) Bulbs

G04860660

Courtesy of MAZDA MOTORS CORP.
