Ambient Temperature Sensor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

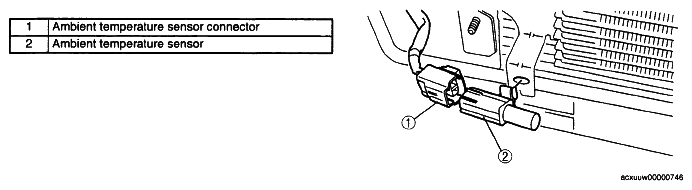

    Fig 1: Ambient Temperature Sensor
    G04860684Courtesy of MAZDA MOTORS CORP.
