Airflow Volume Control Dial Inspection

  1. Remove the climate control unit.
  2. Inspect for continuity between the airflow volume control dial terminals using an ohmmeter.
    Fig 1: Identifying Airflow Volume Control Connector Terminal
    G04860691Courtesy of MAZDA MOTORS CORP.
    • If not as specified, replace the airflow volume control dial.

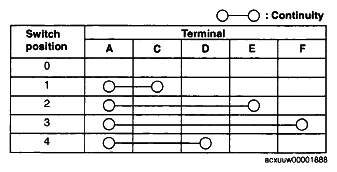

    Fig 2: Continuity Reference Chart
    G04860690Courtesy of MAZDA MOTORS CORP.
