Receiver/Drier Removal Note

  1. Disconnect the block joint type pipes by grasping female side of the block with hand and holding firmly, then tighten the connection bolt.

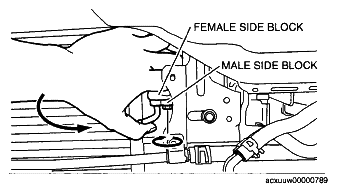

    Fig 1: Disconnecting Block Joint Type Pipes
    G04860634Courtesy of MAZDA MOTORS CORP.
